Raphael: js library for Scalar Vector Graphics


I don't do much (web) front-end design usually, although often I find it vital to visualize my ideas using some sort of basic but functional UI-kit. Well, if you're like me, you'll probably be happy to know about Raphael. This is a javascript library that sits on top of the SVG specifications and provides a set of (very straighforward) APIs for creating vector graphics and animations in most browsers.

Scalable Vector Graphics (SVG) is a family of specifications of an XML-based file format for describing two-dimensional vector graphics, both static and dynamic (i.e. interactive or animated). The SVG specification is an open standard that has been under development by the World Wide Web Consortium (W3C) since 1999. SVG images and their behaviors are defined in XML text files. This means that they can be searched, indexed, scripted and, if required, compressed. Since they are XML files, SVG images can be created and edited with any text editor, but specialized SVG-based drawing programs are also available.

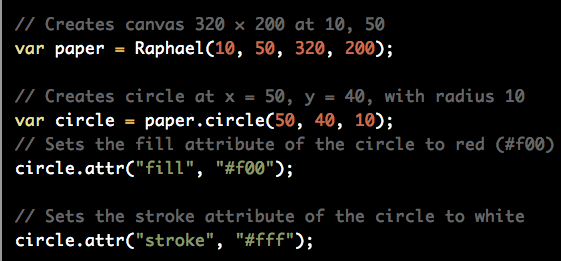

Writing SVG stuff can be very painful, but using Raphael it almost becomes fun. The official site gives you various examples (eg check out the slick polar clock, or the diagram elements), and code that shows how easy it is to get started:

Screen shot 2010-09-19 at 23.15.05.png

Looking forward to spend more time on this. For now, I've just collected a few good learning resources about it, which I thought I'd share:

Below, some screenshots of a fancy clock, a tiger, and a graph, all built entirely via Raphael.

Screen shot 2010-09-19 at 23.30.43.png

Screen shot 2010-09-19 at 23.34.19.png

Screen shot 2010-09-19 at 23.34.32.png

..

Cite this blog post:


Michele Pasin. Raphael: js library for Scalar Vector Graphics. Blog post on www.michelepasin.org. Published on Sept. 19, 2010.
